> OLED LCM > OLED GFOG128064
 OLED GFOG128064
Filter Results
Add to Inquiry

NO Model NO Picture Spec Size Resolution Outline Dimension
(WxHxT mm)
Interface
01

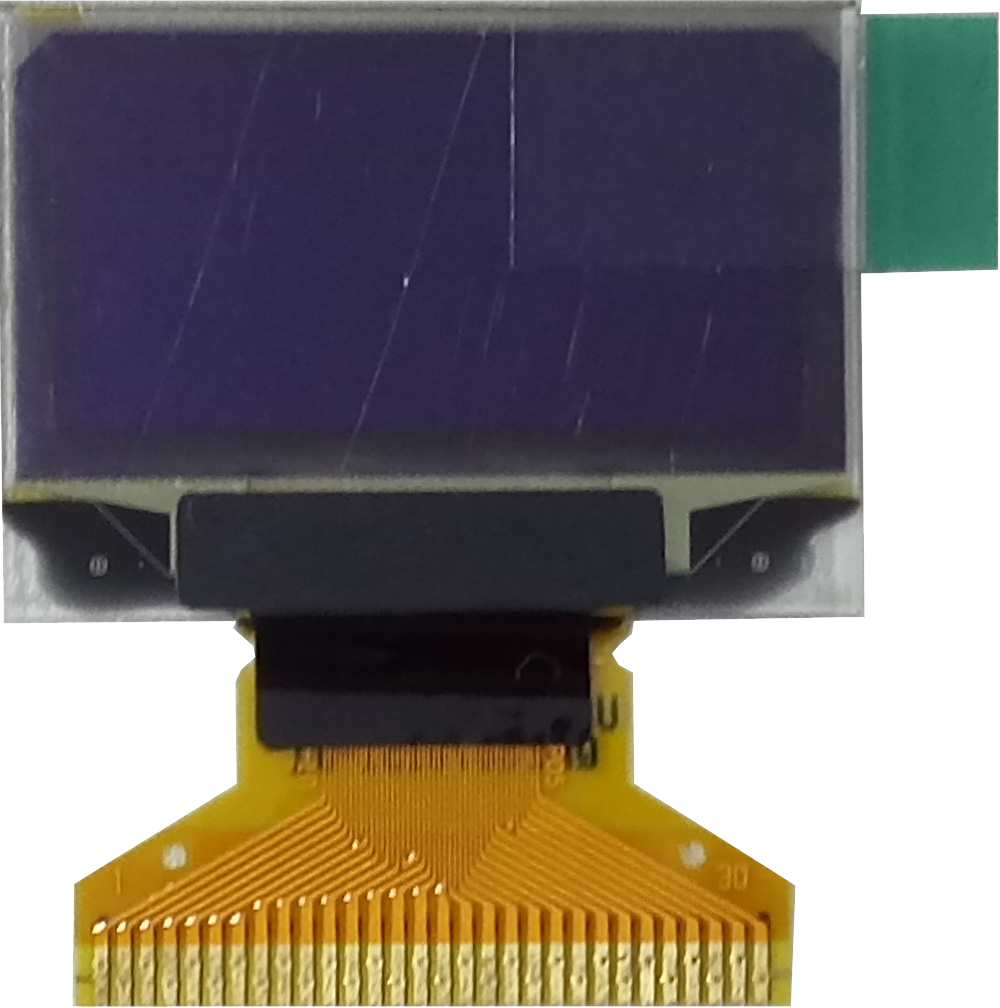

GFOG128064D
0.96"
128 x 64
26.7 x 19.26 x 1.45
8-bit 68XX/80XX, 3-/4-wire SPI, I2C
02

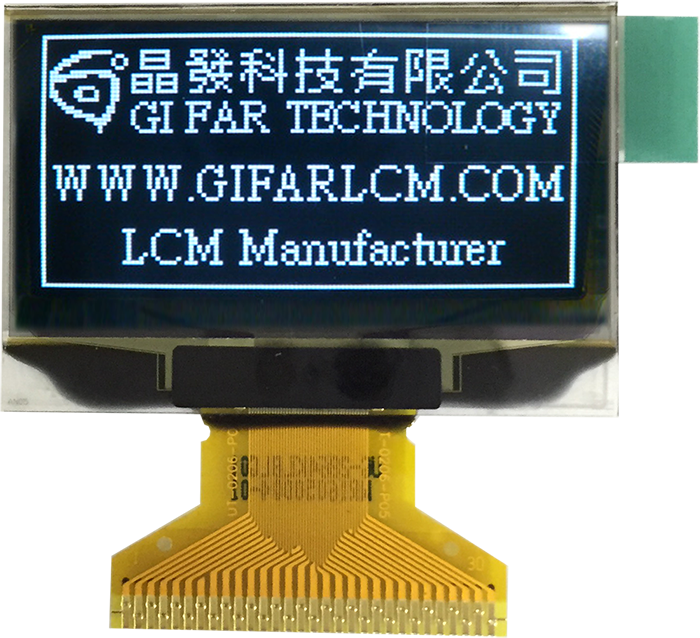

GFOG128064E
1.3"
128 x 64
34.5 x 23 x 1.45
8-bit 68XX/80XX,3-/4-wire SPI, I2C
03

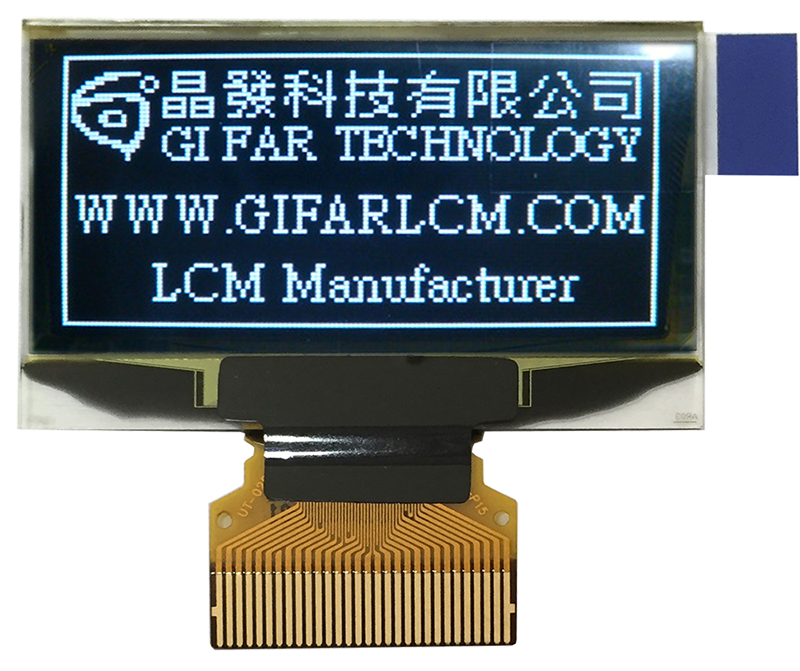

GFOG128064EA
1.3"
128 x 64
34.5 x 23 x 1.45
8-bit 68XX/80XX, 3-/4-wire SPI, I2C
04

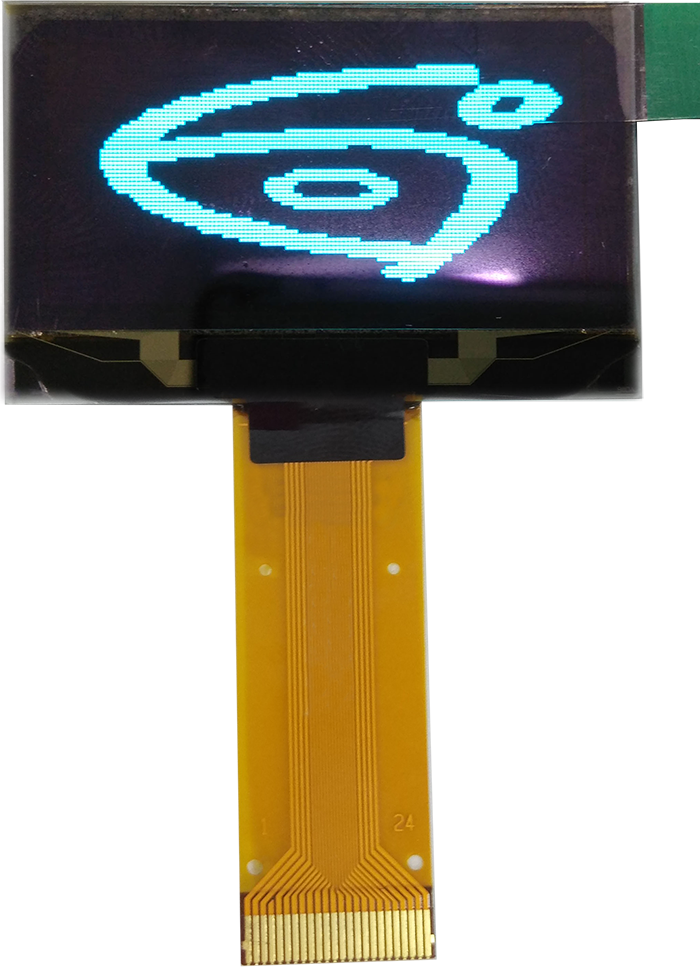

GFOG128064F
1.54"
128 x 64
42.04 x 27.22 x 1.45
8-bit 68XX/80XX, 4-wire SPI, I2C
x
* Required information
Company*
Contact Person*
E-mail*
Country*
Website*
Business Type* Distributor Reseller Manufacturer Design House
Other:
Phone*
Fax*
q'ty(per order/per year)*
Note
NO Model NO Picture Size Resolution
(Char x Line)
Outline Dimension
(WxHxT mm)
Interface
01 GFOG128064D 0.96" 128 x 64 26.7 x 19.26 x 1.45 8-bit 68XX/80XX, 3-/4-wire SPI, I2C
