> COB Graphic > COB GFE128064
COB GFE128064
Filter Results
viewing Area(WxH mm)
Active Area(WxH mm)
Outline Dimension(WxHxT mm)
見積に加える
NO
Model NO
Spec
VA
(WxH mm)
AA
(WxH mm)
Outline
(WxHxT mm)
Driver IC
01

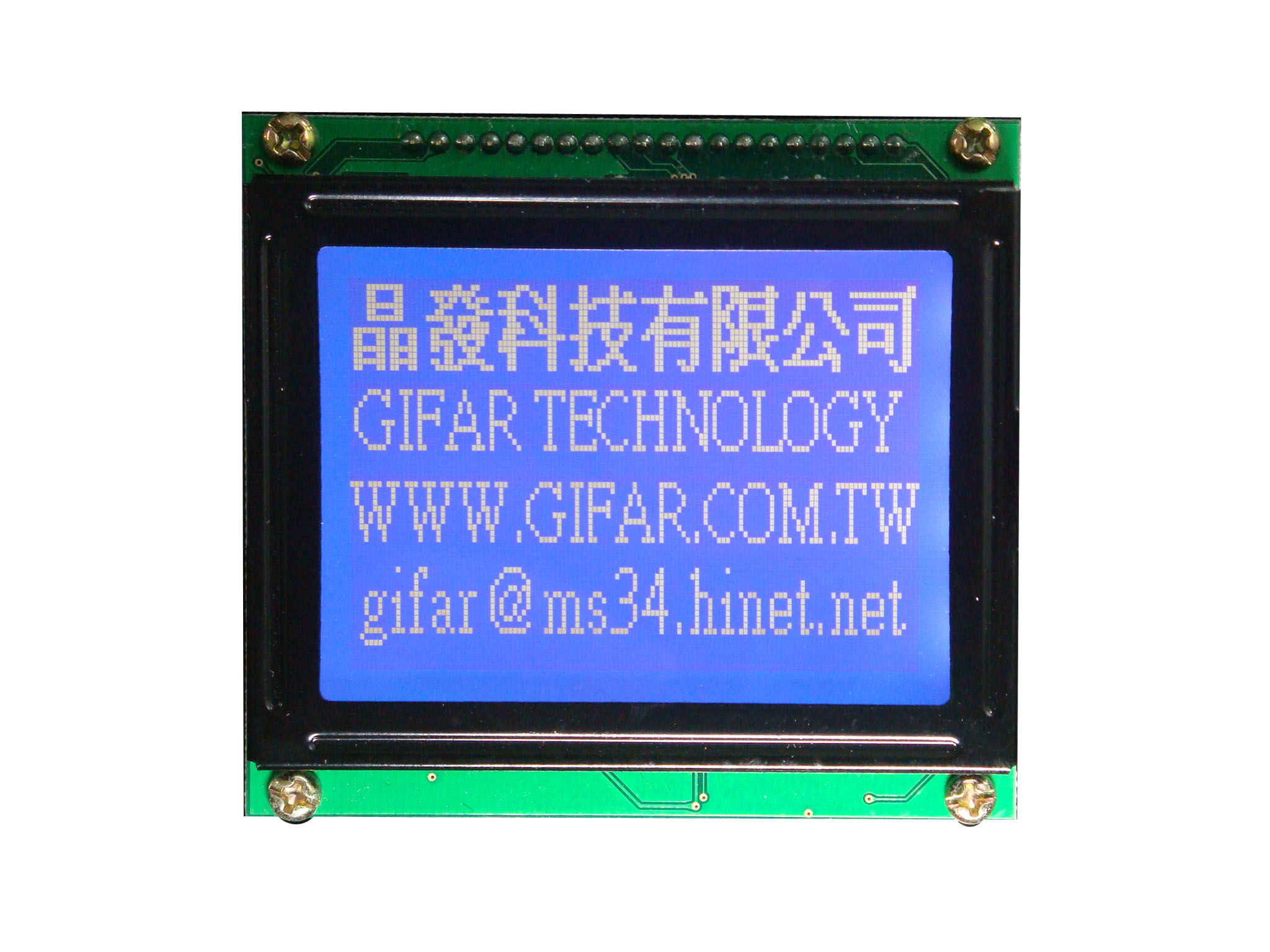

GFE128064A
62 x 44
56.27 x 38.35
78 x 70 x 14
KS0107
02

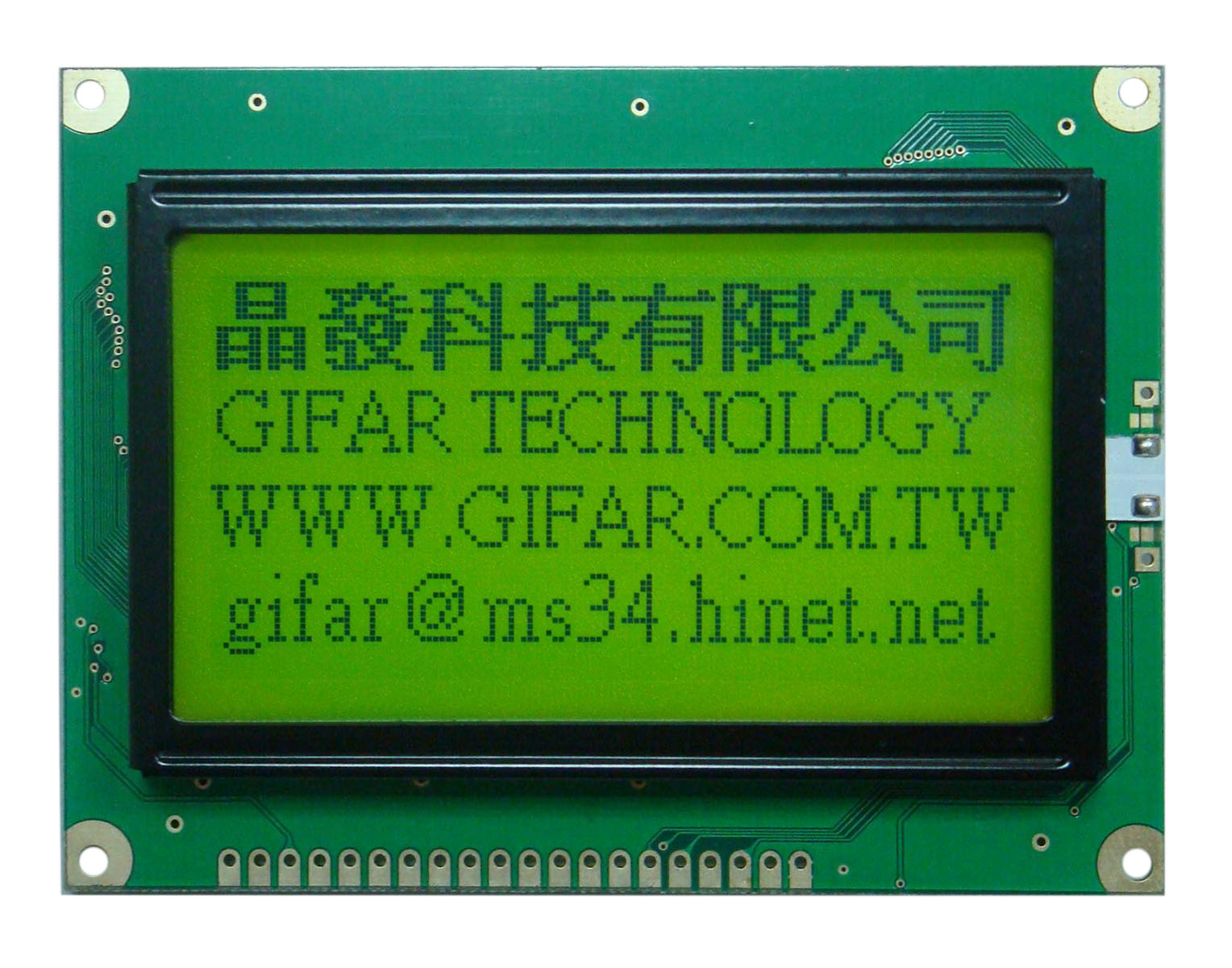

GFE128064C
72 x 40
66.52 x 33.24
93 x 70 x 13.6
KS0108
03

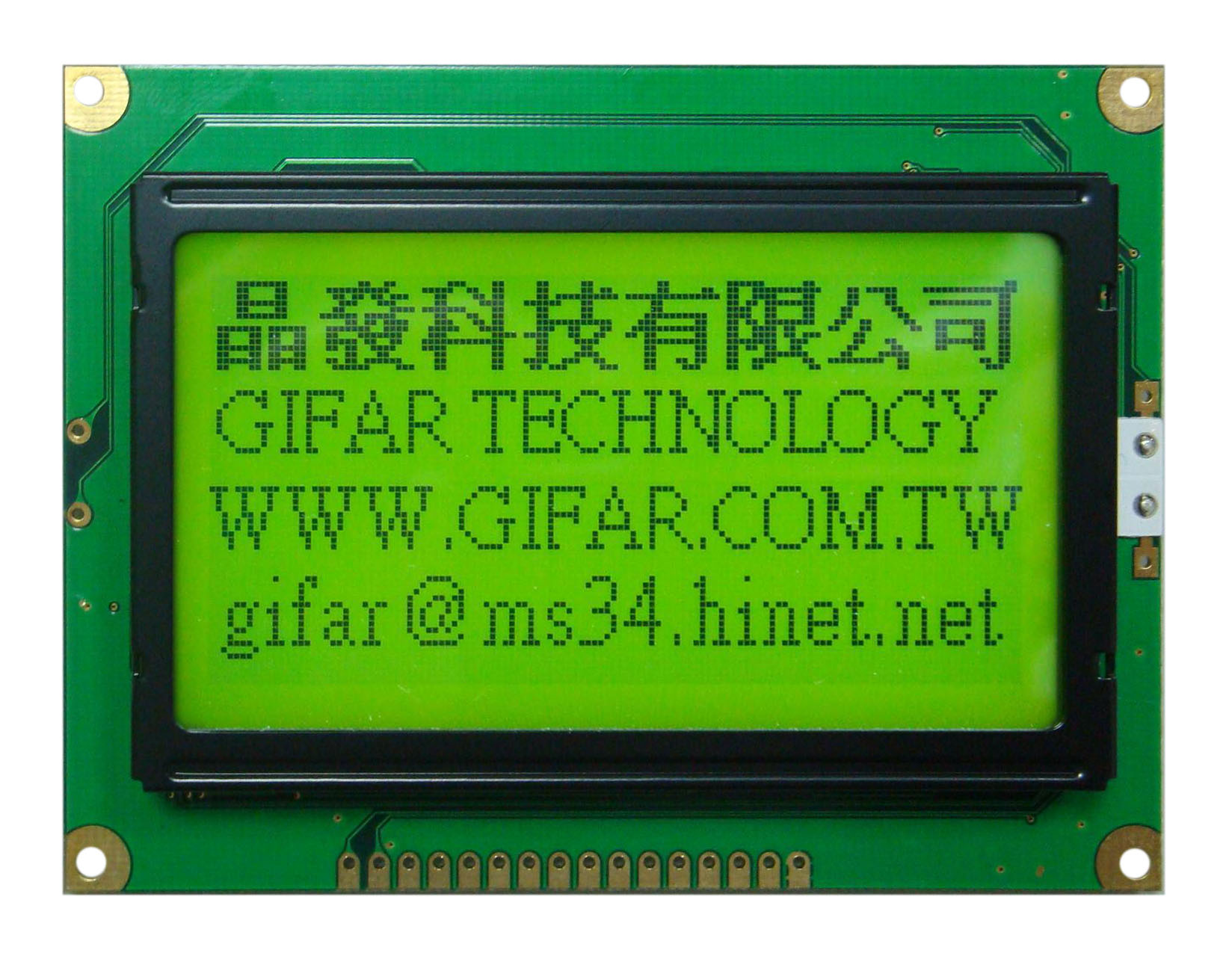

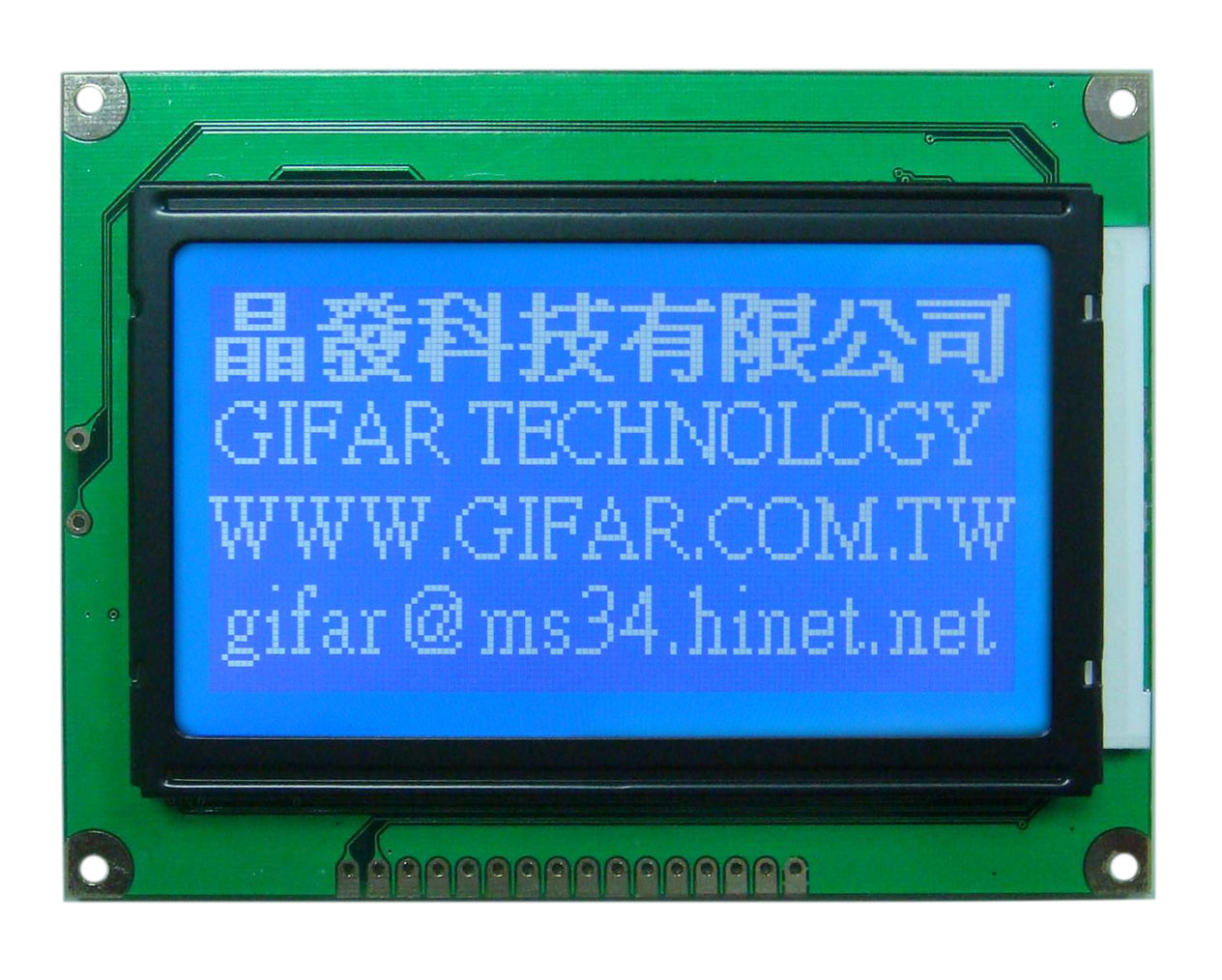

GFE128064E
72 x 40
66.52 x 33.24
93 x 70 x 13.6
ST7920-0A
04

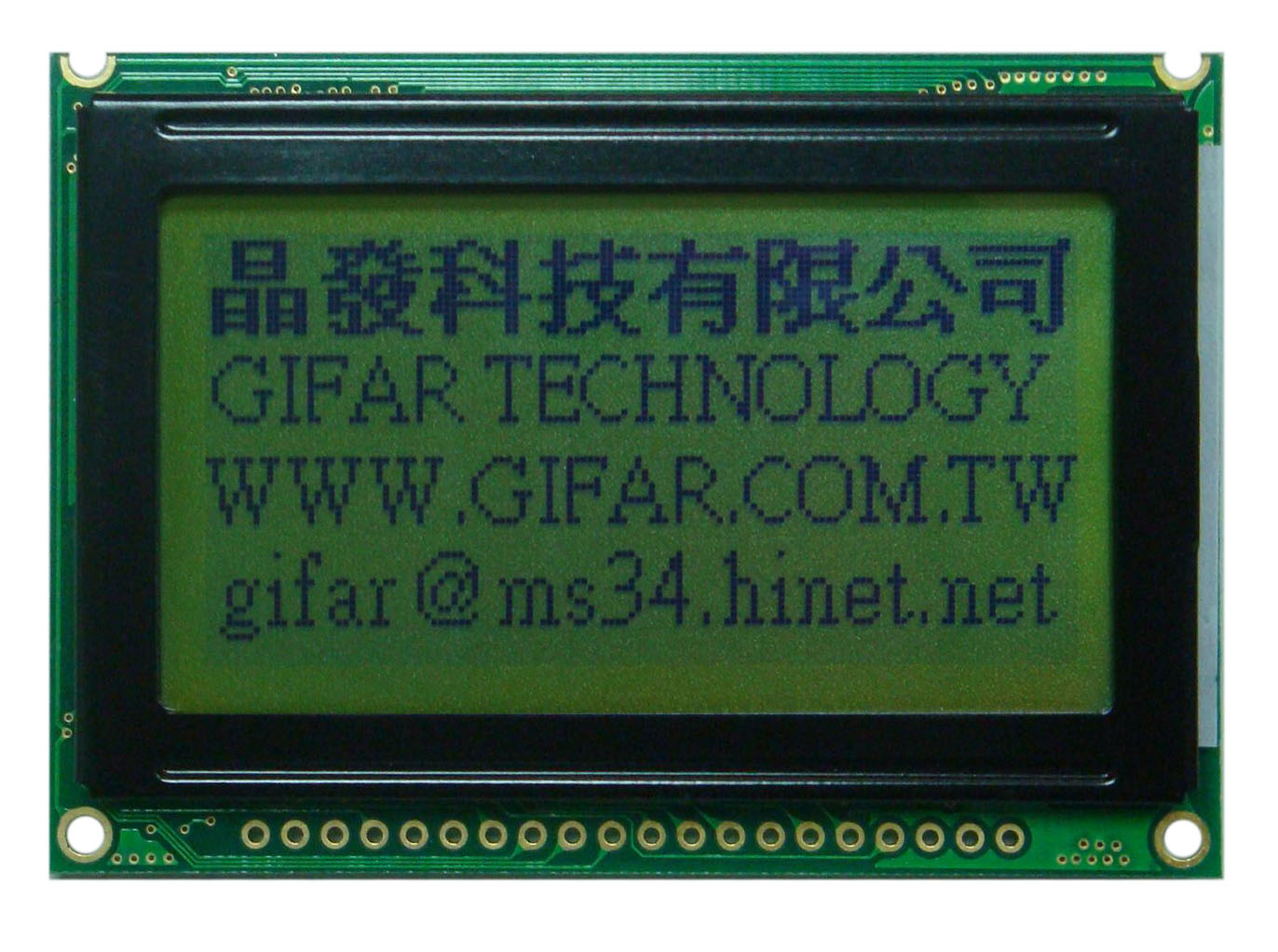

GFE128064F
60 x 32.6
55 x 27.48
75 x 52.7 x 8.4
S6B0107
05

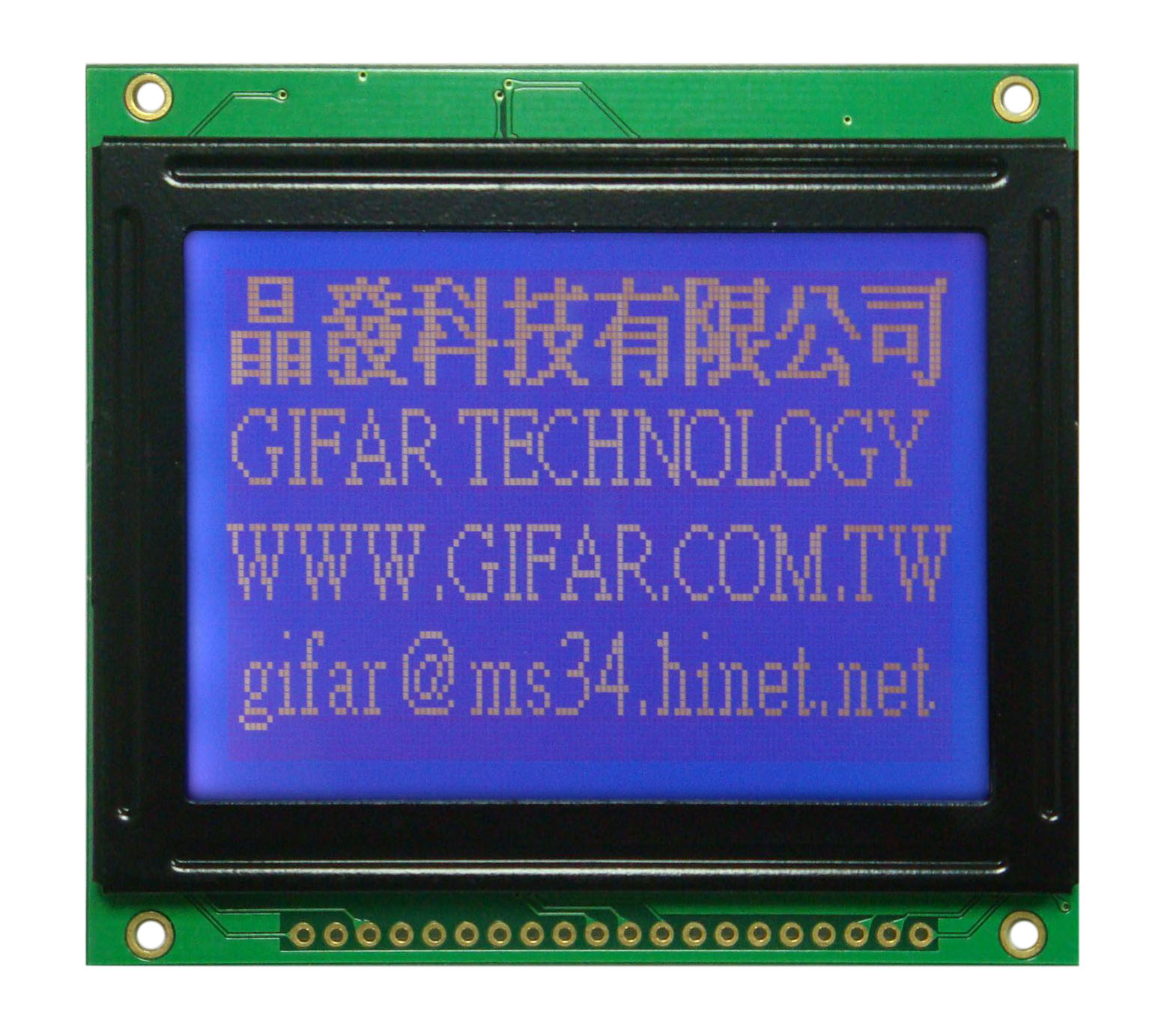

GFE128064H
62 x 44
56.27 x 38.35
78 x 70 x 11
T6963C
06
GFE128064N
72 x 40
66.52 x 33.24
93 x 70 x 13.6
ST7920
07
GFE128064O
51.6 x 21.8
42.21 x 19.17
78 x 37 x 8.8
RW1065
08
GFE128064P
51.9 x 22.869
43.495 x 20.839
77 x 36 x 11.3
RW1065
